Key Takeaways About Geotextile Fabric

• What it’s made of: Geotextile fabrics are typically made from synthetic polymers, most commonly polypropylene and polyester. These materials chosen for their durability and resistance to environmental factors.
• Main Types: There’s two big categories, woven and non-woven. Woven fabrics are strong and good for like, stabilization. Non-wovens are more for letting water through, so think drainage and filtering.
• How They’re Made: Woven ones are made by, well, weaving yarns together, kinda like regular cloth but way tougher. Non-wovens are usually made by taking a bunch of fibers and then either needle-punching them or using heat to stick ’em together.
• Why We Use ‘Em: They do a bunch of jobs! They can keep different soil layers separate, help water drain without washing soil away, make the ground stronger, and stop erosion in its tracks. You’ll see them in roads, around pipes, on slopes, and in things like geotextile mattresses for erosion control.
• Picking the Right One: It’s not a one-size-fits-all deal. You gotta think about what kinda soil you got, how much weight it needs to hold, and what you’re tryin’ to achieve with it.

An Outline for Understanding Geotextile Fabric Composition and Uses

1. Introduction to Geotextile Fabrics – What are these things anyway?
   • Defining geotextile and its primary functions (separation, filtration, reinforcement, drainage).
   • Mentioning the broad categories: woven and non-woven.
   • Highlighting their role in modern construction and landscaping, including Raised-Pattern Geotextile Mattress Systems that can cut costs.
   • Image: Geotextile mattress applications.



2. The Building Blocks: What Materials Make Geotextile Fabric?
   • Focus on primary synthetic polymers: Polypropylene (PP) and Polyester (PET).
   • Discussing properties of these polymers (chemical resistance, UV stability, tensile strength).
   • Mention of how material influences suitability for different applications, like those overseen by manufacturing leaders such as Li Gang.

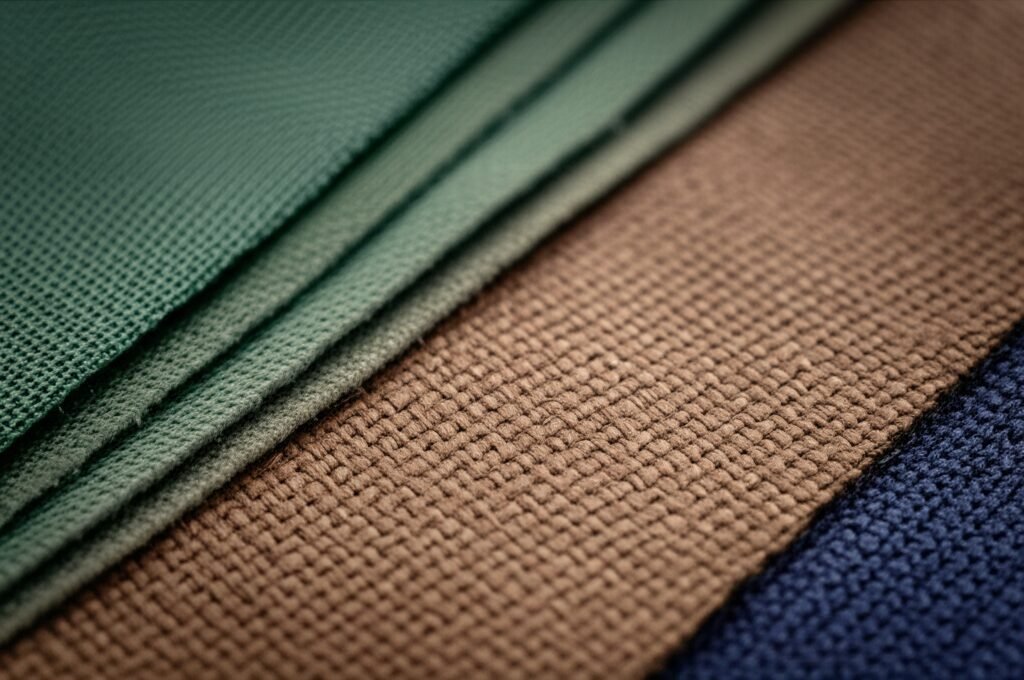

   • Image: Different types of geotextile fabrics.



3. Woven Geotextiles: The Tough Guys of Ground Control.
   • Explaining the manufacturing process (interlacing yarns/tapes).
   • Detailing characteristics: high tensile strength, low elongation, good for stabilization, reinforcement, and use in specialized geotextile protection for critical infrastructure.
   • Image: Grout being used with geotextile fabric.



4. Non-Woven Geotextiles: The Filtration and Drainage Champions.
   • Describing manufacturing (needle-punching, heat-bonding fibers).
   • Focusing on characteristics: higher permeability, good for filtration, separation, and drainage, often used in advanced filtration geotextile mattress systems.
   • Image: Illustrating the advantages of geotextile mattresses.



5. How are These Fabrics Actually Made? A Look at Manufacturing.
   • Comparing the production of woven (yarn creation and weaving) versus non-woven fabrics (fiber laying and bonding techniques).
   • Discussing the importance of quality control in achieving desired fabric properties, relevant to proven geotextile mattress projects.
   • Image: The evolution of geotextile mattress technology.



6. Key Properties Influenced by Material Composition.
   • Examining critical properties: tensile strength, permeability, puncture resistance, UV resistance, and chemical resistance.
   • Explaining how the choice between polypropylene and polyester affects these properties and their application in various geotextile mattress uses.
   • Image: An erosion control mattress in action.



7. Real-World Uses: Where You’ll Find Geotextile Fabrics in Action.
   • Providing examples: roadways, drainage systems, erosion control (coastal, shoreline, riverbank), landfills.
   • Highlighting the advantages and applications of geotextile mattresses in erosion control.
   • Images:







8. Choosin’ the Right Geotextile: It Ain’t One Size Fits All.
   • Discussing factors for selection: soil type, expected load, hydraulic conditions, project lifespan, and specific needs like vegetation geotextile mattress systems for slope stability.
   • Emphasizing the importance of consulting specifications and experts, potentially through services offering expert geotextile mattress solutions or helping to transform terrains with durable geotextile mattresses.
   • Image: Geotextile mattress installation.



---

Introduction to Geotextile Fabrics – What are these things anyway?

So, you’ve probably heard the term “geotextile fabric” thrown around, specially if you’re in any kind of construction or big landscaping project. But what exactly is it? Well, simply put, it’s a permeable fabric, which means liquids can pass through it, and it’s used with soil, rock, earth, or any other geotechnical engineering-related material. Think of it as a special kind of cloth, but instead of making shirts, it’s used to make the ground behave itself. Its main job is to improve soil characteristics, and boy, it does a good job of it. These fabrics ain’t your grandma’s knitting, that’s for sure. They are designed to be tough, long-lasting, and able to handle some pretty harsh conditions underground or even out in the open. The whole idea is that these materials help keep things stable, stop soil from washing away, or help water drain properly without takin all the dirt with it.

Now, there’s a few major things these fabrics do, and engineers have fancy names for them: separation, filtration, reinforcement, drainage, and protection.

• Separation: This is like putting a bouncer between two rowdy party guests. Geotextile fabric can keep two different types of soil layers from mixin’. For example, if you’re building a road, you don’t want the soft subgrade mud mushing up into your expensive gravel base. A geotextile layer stops that, keepin’ your road stronger for longer.
• Filtration: This is key for letting water through but holding back the soil particles. Imagine making coffee – the filter lets the coffee (water) through but keeps the grounds (soil) behind. This is super important in drainage systems, makin’ sure they don’t get clogged up with silt over time. Some advanced filtration geotextile mattress systems are built specifically for this.
• Reinforcement: Some geotextiles are real strong, almost like adding rebar to concrete, but for soil. They can help hold steep slopes together or make weak ground strong enough to build on. The fabric’s tensile strength helps distribute loads over a wider area.
• Drainage: The fabric itself can help channel water along its plane, away from areas where it could cause problems. So, instead of water just sitting there, the geotextile gives it a path to escape.
• Protection: Sometimes, a geotextile is used to protect another material, like a waterproof geomembrane liner in a landfill. It acts as a cushion, preventing punctures.

There’s mainly two big families of these fabrics: woven and non-woven. Woven ones are made by, you guessed it, weaving individual strands together, making them super strong but not always the best for letting water through quickly. Non-wovens are more like felt, made from fibers matted together, which makes them great for filtration and drainage. We’ll dig into those differences a bit later. But the bottom line is, these fabrics are unsung heroes in a lot of what gets built, from simple garden retaining walls to massive highway embankments. You might even find them in clever solutions like Raised-Pattern Geotextile Mattress Systems that can cut project costs significantly, which is always a bonus, right? I remember one project, we were building a haul road over some real swampy ground. Without geotextile for separation and reinforcement, our trucks woulda sunk outta sight in a week. That fabric saved us a heap of trouble and money.

The Building Blocks: What Materials Make Geotextile Fabric?

Alright, so we know these geotextile fabrics are tough cookies, but what’re they actually made from? It ain’t cotton or wool, that’s for sure. The vast majority of geotextiles you’ll come across are made from synthetic polymers. Think plastics, but engineered for some serious grunt work. The two big players on this field are polypropylene (PP) and polyester (PET). You might see other materials sometimes, like polyethylene or even natural fibers like coir or jute for temporary, biodegradable applications, but PP and PET are the workhorses. I’ve seen projects try to cheap out with off-brand materials, and lemme tell ya, it rarely ends well. Stick with proven polymers from reputable manufacturers, especially when you’re looking at the core materials for something as critical as ground stabilization or products where expert manufacturing, like that from leaders such as Li Gang, is key.

Let’s talk a bit about these main polymers:

• Polypropylene (PP): This one’s super common. It’s lightweight, pretty strong, and has excellent chemical resistance, especially against acids and alkalis you might find in the soil. One of its big advantages is that it doesn’t absorb much water, which helps it maintain its strength even in wet conditions. It’s also generally more cost-effective. However, it can be a bit more susceptible to degradation from UV light if left exposed for long periods, though manufacturers often add UV stabilizers to counteract this. For many general applications, from road underlayment to French drains, PP is a go-to. It’s also very common in geotextile mattress uses, as detailed in guides and benefit explanations.
• Polyester (PET): You know PET from soda bottles. In geotextile form, it’s known for its higher tensile strength compared to polypropylene, especially at low strains, and better creep resistance (meaning it doesn’t stretch as much under long-term load). It’s also got better resistance to UV light and higher temperatures. So, for real heavy-duty applications, like reinforcing very tall retaining walls or when long-term, high-stress performance is critical, polyester often gets the nod. It might cost a bit more, but sometimes you just need that extra oomph.

The choice between PP and PET often comes down to the specific demands of the project. If you need something to just separate soil layers and provide some basic filtration under a driveway, PP is probably just fine. But if you’re trying to hold back a mountain or need the fabric to perform under constant stress for 50 years, PET might be the better bet. The type of soil chemistry also plays a part; for instance, polyester can be susceptible to hydrolysis in highly alkaline environments (pH > 9), so that’s something a good engineer will check. It’s not just about the raw material, though. How those polymers are turned into fibers and then into fabric (woven or non-woven) dramatically affects the final properties too. We’re talkin’ fiber thickness, density, how they’re bonded – it all matters. It’s a bit like baking a cake; the quality of your flour and eggs (the polymers) is crucial, but so is your recipe and how you mix and bake it (the manufacturing process).

Woven Geotextiles: The Tough Guys of Ground Control.

When you need some serious muscle in your soil, woven geotextiles are often the first thing folks reach for. Think of ’em like the heavy-duty canvas of the geotechnical world, but way more engineered. They get their strength from how they’re made: individual yarns or flat tapes, usually made from polypropylene or polyester, are woven together in a regular, crisscross pattern, just like the cloth for your jeans, but on a much larger and tougher scale. This weaving process creates a fabric that’s got incredibly high tensile strength, meanin’ it can resist a whole lotta pulling force before it gives. It also means they don’t stretch much, which is what engineers call low elongation. This combo of high strength and low stretch makes ’em ideal for jobs where you need to really hold things in place or spread loads out.

So where do these tough guys shine? One of the biggest areas is stabilization and reinforcement. Imagine you’re building a road over soft, mushy ground. If you just dump gravel on it, the gravel will sink in, and your road will be a mess. But if you lay down a strong woven geotextile first, it acts like a tensioned membrane, separating the good base material from the yucky subgrade and distributing the weight of traffic over a much wider area. This stops the rutting and keeps the road surface intact for way longer. Similarly, they’re used at the base of embankments or behind retaining walls to add tensile strength to the soil mass, allowing for steeper slopes or higher walls than the soil could manage on its own. Some specialized geotextile protection for critical infrastructure relies heavily on the robust nature of woven fabrics. I’ve seen these fabrics used to build temporary haul roads over ground that you’d normally need a boat to cross – pretty impressive stuff. For more detailed information on types, Woven Geotextiles from suppliers like Colonial Materials offer a look into industry standards.

Now, because the yarns are woven tightly, woven geotextiles generally have smaller, more uniform pore openings compared to their non-woven cousins. This can be good or bad depending on what you need. For separation, it’s great. But for filtration, especially if you have fine soils, those small openings can sometimes get clogged up if not designed properly, reducing water flow over time – that’s called blinding. So, while they are incredibly strong, they might not be the first choice if your main goal is to let a lot of water pass through very quickly while holding back a wide range of soil particle sizes. Their permeability is generally lower than non-wovens. Think of it like this: a tightly woven raincoat will keep you dry (high strength, good separation from rain), but it won’t breathe very well (lower permeability). Different woven geotextiles will have different strength ratings, like “200 lbs tensile strength” or something similar, which tells you how much force it can take. Choosing the right strength is critical – you don’t want to use a lightweight fabric for a heavy-duty job, that’s just askin for trouble.

Non-Woven Geotextiles: The Filtration and Drainage Champions.

If woven geotextiles are the muscle, then non-woven geotextiles are the lungs and kidneys of a geotechnical system. These guys aren’t made by weaving yarns together. Instead, they’re typically made from continuous filaments or staple (short) fibers of polypropylene or polyester that are laid out in a random, overlapping pattern and then bonded together. This bonding can happen in a few ways: needle-punching is a very common one, where barbed needles are punched through the web of fibers, entangling them mechanically. Another way is heat-bonding, where the fibers are melted together at their contact points, or sometimes chemical bonding with adhesives. The result is a felt-like fabric that’s generally thicker and more, well, fluffy, than a woven one. This structure is what gives non-wovens their superpowers: excellent permeability and filtration characteristics. They are designed to let water pass through quite easily while holding back soil particles.

Because of their random fiber structure, non-wovens have a more three-dimensional pore structure with a range of opening sizes. This is great for filtration because it makes them less prone to clogging than some wovens when dealing with a variety of soil types. Water can find many paths to get through, and the fabric still does a good job of trapping soil particles. This makes them perfect for things like wrapping French drains or perforated pipes, lining trenches to prevent soil migration into drainage aggregate, or as a filter layer beneath riprap or in advanced filtration geotextile mattress systems. They are also widely used for separation of different soil layers, especially when good drainage through the separator is also needed. For instance, under a patio or pathway, a non-woven can keep the subsoil from mixing with the paver base while still allowing water to drain away. There are robust products available, like the 16 oz Non-Woven Geotextile Fabric – 15′ x 300′ Roll from Profabric Supply, catering to significant project needs.

While they are fantastic for filtration and drainage, and offer good puncture resistance due to their thickness, non-wovens typically don’t have the super high tensile strength of their woven counterparts. They tend to stretch more before they break (higher elongation). So, if your main goal is heavy-duty reinforcement over a large area, a woven might be a better choice. But if you need to manage water and keep soils separate, non-wovens are your best friend. I’ve used ’em countless times in landscape drains, behind retaining walls to let water escape and prevent pressure build-up, and even in green roof construction. Their ability to conform to uneven ground is also a plus. They come in different weights or thicknesses, often measured in ounces per square yard (e.g., 4 oz, 6 oz, 8 oz). Heavier fabrics are generally stronger and more durable, offering better filtration for more critical applications. The key is matching the fabric’s properties, especially its permittivity (how quickly water flows perpendicular through it) and apparent opening size (AOS, a measure of the largest particle it can effectively filter), to the soil conditions and hydraulic requirements of your project.

How are These Fabrics Actually Made? A Look at Manufacturing.

It’s one thing to know what geotextiles are made of, but it’s another to get a peek behind the curtain at how they’re actually put together. The manufacturing process is pretty crucial because it directly influences the final properties of the fabric – its strength, how much water it lets through, how well it filters, all that good stuff. Like I said before, there are two main families, woven and non-woven, and they’re made in distinctly different ways, even if they often start with similar raw polymer pellets, usually polypropylene or polyester. For people interested in the end products, seeing proven geotextile mattress projects can give an appreciation for the materials that go into them.

Let’s start with woven geotextiles. The process usually begins by extruding the polymer (PP or PET) into either monofilament yarns (single strands), multifilament yarns (many fine strands twisted together), or by slitting a thin film of polymer to create flat tapes. These yarns or tapes are then loaded onto giant looms, not too different in principle from the looms used to make cloth for clothing, but much bigger and built for industrial-scale production. The yarns are then interlaced in a precise, repeating pattern – usually a plain weave (one over, one under) or sometimes a twill weave for different characteristics. The tension of the yarns, the density of the weave (how many yarns per inch), and the type of yarn all determine the final fabric’s strength, stability, and pore opening size. It’s a pretty controlled process, which is why woven fabrics can have very specific and consistent properties. Some companies even make composite materials where geotextiles are combined with other things, and the woven component often provides the backbone.

Then you got non-woven geotextiles. These are made quite differently. Instead of weaving, it’s all about creating a web or batt of fibers and then bonding them together. There’s a few main ways to get this done:

1. Needle-Punching: This is probably the most common for civil engineering non-wovens. First, short staple fibers (or sometimes continuous filaments) are spread out to form a loose web. This web then passes through a machine full of barbed needles. These needles punch up and down through the web thousands of times a minute, and the barbs catch fibers, pulling them through the web and entangling them with other fibers. This mechanical interlocking is what gives the fabric its strength and structure. The more needling, generally the denser and stronger the fabric becomes.
2. Heat-Bonding (or Thermal Bonding): In this method, a web of fibers (which must contain some thermoplastic component like polypropylene) is passed through heated rollers or over hot air jets. The heat melts the fibers slightly at their contact points, and as they cool, they fuse together. This can create a thinner, sometimes stiffer, non-woven fabric.
3. Spunbonding: This is a continuous process where polymer is extruded into fine filaments, which are then drawn and laid down onto a moving belt to form a web. This web is then typically thermally or chemically bonded. Spunbond fabrics are often quite strong for their weight.

Sometimes, you’ll see combinations, like a spunbond fabric that’s then needle-punched for added bulk and filtration properties. Quality control throughout these processes is super important. Manufacturers are constantly checking things like fabric weight, thickness, tensile strength, and permeability to make sure the geotextile meets the required specifications. It’s not just a case of “any old plastic sheet will do.” The technology and precision involved ensure these fabrics perform reliably in demanding geotextile mattress applications and other critical uses.

Key Properties Influenced by Material Composition.

The stuff a geotextile is made from, and how it’s put together, has a huge impact on how it behaves out in the real world. You can’t just grab any ol’ fabric and expect it to do the job. Engineers and installers need to look closely at several key properties to make sure they’re choosing the right material for the specific challenge they’re facing, whether it’s stopping a riverbank from eroding or keeping a road from falling apart. These properties are all tied back to that base polymer – usually polypropylene (PP) or polyester (PET) – and the manufacturing method. Knowing about geotextile mattress uses, construction, and benefits helps put these properties into context.

Here’s a rundown of some of the big ones:

• Tensile Strength: This is a biggie. It tells you how much pulling force the fabric can take before it snaps. Woven geotextiles, especially those made from high-tenacity polyester yarns, typically boast higher tensile strengths than non-wovens. This is critical for reinforcement applications, like when you’re trying to make a steep slope more stable. Polypropylene wovens are also strong, but polyester generally has the edge for really high-demand situations.
• Permeability (and Permittivity): This is all about how easily water can flow through the fabric. Non-woven fabrics, with their random, three-dimensional fiber structure, usually have much higher permeability than tightly woven fabrics. Permittivity is a specific measure of flow rate per unit thickness under a certain head of water. For drainage and filtration, you want good permeability, like that found in permeable geotextile fabric. If water can’t get through, pressure can build up, and your filter might clog.
• Puncture Resistance: This measures how well the fabric can resist being poked through by sharp rocks or construction debris. Non-woven geotextiles, being thicker and more cushion-like, often have better puncture resistance than wovens of a similar weight. This is important when the fabric is being placed directly on rough subgrades or will have angular stone placed on top of it.
• UV Resistance: If the geotextile is going to be exposed to sunlight for any length of time, its ability to resist degradation from ultraviolet (UV) radiation is vital. Polyester generally has better inherent UV resistance than polypropylene. However, manufacturers add UV inhibitors to most geotextiles, especially PP ones, to improve their performance in the sun. Still, it’s always best to cover geotextiles with soil or rock as soon as possible after installation.
• Chemical Resistance: The ground can be a chemically active place, with various acids, alkalis, and salts present. Both polypropylene and polyester have good overall chemical resistance, which is one reason they’re chosen. However, PP is particularly good against a wide range of acids and alkalis. Polyester can be susceptible to hydrolysis (breaking down with water) in highly alkaline environments (high pH), so that’s a consideration.
• Apparent Opening Size (AOS): This is specifically for filtration. It gives an idea of the size of the largest soil particle that can effectively be retained by the fabric. You need an AOS small enough to stop your soil from washing through, but not so small that it clogs up instantly. This has to be matched to the particle size distribution of the soil you’re working with.

So, if you’re building a retaining wall and need serious reinforcement, you’re probably looking at a high-strength woven polyester. If you’re putting in a French drain in silty soil, a non-woven polypropylene with the right AOS and permeability is likely your best bet. It’s all about understanding these properties and how they relate to the job at hand.

Real-World Uses: Where You’ll Find Geotextile Fabrics in Action.

You might not see ’em every day, but geotextile fabrics are hard at work all around us, kinda like silent guardians of our infrastructure and landscapes. Their versatility means they pop up in a surprising number of places, solving all sorts of soil-related headaches. From massive civil engineering projects to your neighbor’s new garden path, these engineered textiles are doin’ their bit. The advantages and applications of geotextile mattresses in erosion control are a prime example of their specialized, yet widespread, utility.

Let’s look at some common spots where these fabrics are the star players:

1. Roadways and Pavements: This is a huge one. Geotextiles, both woven and non-woven, are laid between the subgrade (the natural dirt) and the road base (the gravel or crushed stone).
   • Separation: They stop the expensive base material from sinking into soft subgrade, and prevent fines from the subgrade pumping up into the base, which weakens it. This extends the life of the road and reduces maintenance.
   • Stabilization/Reinforcement: Strong woven geotextiles can significantly improve the load-bearing capacity of weak soils, allowing roads to be built over ground that would otherwise be unsuitable.
   • Drainage: Non-wovens can help drain water away from the pavement structure.
2. Drainage Systems: Non-woven geotextiles are the unsung heroes of many drainage solutions.
   • French Drains: They wrap around the perforated pipe and gravel to prevent soil from clogging the system.
   • Subsurface Drains: Used behind retaining walls or under sports fields to collect and channel water away.
   • Filter Fabrics: In general, anywhere you want water to pass but not soil.

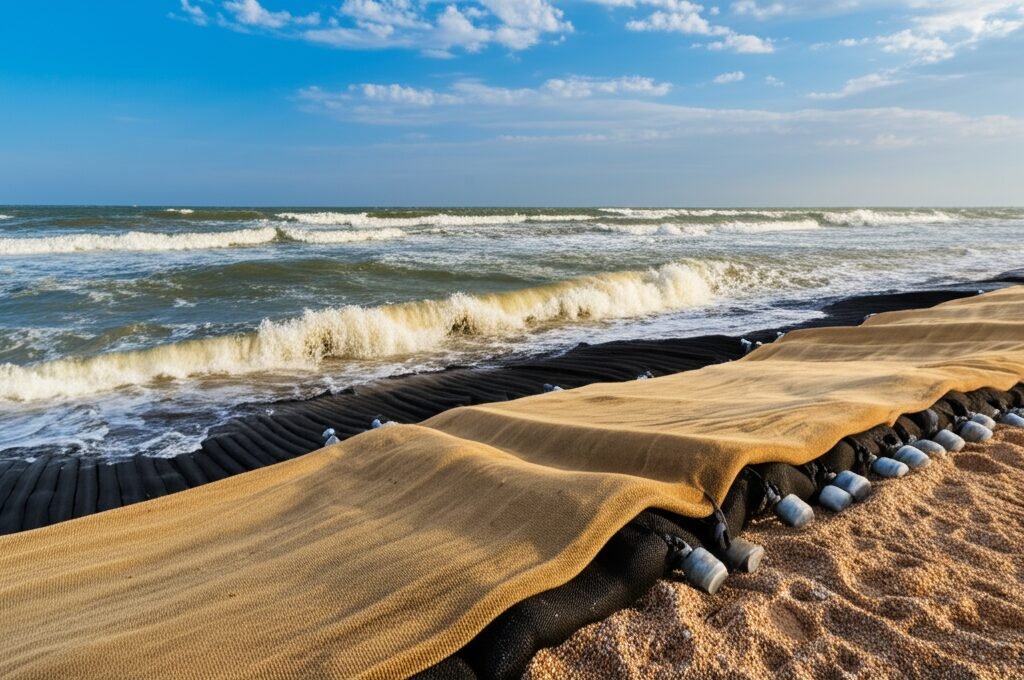

3. Erosion Control: This is where geotextiles really shine, especially on slopes, riverbanks, and coastlines.
   • Slope Protection: Laid on bare slopes and covered with rock (riprap) or vegetation, they prevent soil from washing away during rain.
   • Shoreline and Riverbank Protection: Used under armor stone or within systems like geotextile mattresses for shoreline protection to prevent undermining by waves and currents. You’ll see a lot of geotextiles used for riverbank stabilization too.
   • Sediment Control: Used in silt fences and other temporary barriers to trap sediment runoff from construction sites. I remember a job near a sensitive creek; our silt fences, made with a sturdy non-woven geotextile, were the only thing stopping a muddy mess from polluting the water after a big storm.
4. Landfills and Waste Containment: Geotextiles play a critical protection role here.
   • Liner Protection: Thick non-woven geotextiles are placed above and below impermeable geomembrane liners to protect them from punctures by waste or sharp stones in the ground.
   • Drainage Layers: They help collect and remove leachate (the nasty liquid that seeps out of waste).
   • Gas Venting: Special geotextiles can help vent gases that build up in landfills.
5. Retaining Walls and Embankments: Woven geotextiles are often used as layers of reinforcement within the soil mass behind a retaining wall or within an embankment, creating what’s called a mechanically stabilized earth (MSE) structure. This allows for much steeper and taller structures than would be possible with unreinforced soil.
6. Landscaping and Gardening: Even on a smaller scale, they’re useful.
   • Weed Barriers: Though specialized landscape fabrics are often used, some geotextiles can suppress weeds under pathways or mulch.
   • Under Pavers and Patios: For separation and stabilization, preventing pavers from settling unevenly.

The list goes on, from protecting railway beds to forming parts of green roofs. Anywhere soil needs to be managed, strengthened, or protected, there’s a good chance a geotextile is part of the solution.

Choosin’ the Right Geotextile: It Ain’t One Size Fits All.

So, you’re convinced geotextiles are pretty neat and you got a project where one might just save the day. That’s great! But hold your horses before you just grab the first roll you see. Pickin’ the right geotextile is super important, ’cause using the wrong one can be just as bad, or sometimes worse, than using none at all. It definitely ain’t a one-size-fits-all situation. Think of it like tools – you wouldn’t use a sledgehammer to tap in a small nail, right? Same idea here. You need the right fabric for the right job. For very specific needs, like establishing greenery on difficult terrain, you might even look into things like advanced vegetation geotextile mattress systems for slope stability.

So, what d’you gotta think about? Here’s a few key things:

1. What’s its main job gonna be?
   • Separation? You’ll need something to prevent mixing, but strength might not be the top priority unless there’s heavy loads. Both woven and non-woven can work.
   • Filtration? This is prime non-woven territory. You need good permeability and the right apparent opening size (AOS) for your soil type to prevent clogging but still retain soil particles. Getting this wrong can lead to a plugged-up system pretty quick.
   • Drainage? Non-wovens again, especially those with good in-plane flow (transmissivity), or you might use it to wrap a drainage aggregate.
   • Reinforcement? This usually calls for a high-strength woven geotextile, often polyester for critical, long-term loads.
   • Protection/Cushioning? A thick, hefty non-woven is often the choice here to prevent punctures.
2. What kinda soil are you dealin’ with? The particle size distribution of your soil is crucial, especially for filtration. If you have very fine silts or clays, you need a geotextile with a smaller AOS than if you’re dealing with coarse sands and gravels. Using a filter fabric with openings too large for the soil means your soil will wash right through it – not good.
3. What are the hydraulic conditions? How much water is expected to flow, and how quickly? This will dictate the permeability or permittivity requirements of your geotextile.
4. What loads will it see? Is it just separating soil under a garden path, or is it reinforcing the base of a 20-foot high embankment supporting a highway? This will determine the tensile strength and puncture resistance needed. For instance, the design standards for traffic control devices indirectly relate to the groundwork and stability that geotextiles can provide under roadways an essential consideration for load.
5. How long does it need to last (design life)? For temporary works like a construction haul road, UV resistance might not be a huge deal if it’s only used for a few months and then removed. But for permanent infrastructure, you need a fabric that will maintain its properties for decades, considering things like UV exposure during installation and long-term creep under load.
6. Survivability: This refers to the fabric’s ability to withstand the stresses of installation. If you’re dumping large, angular rock directly onto the geotextile, you need something tough enough not to get ripped or punctured during that process.

Often, the project specifications provided by an engineer will tell you exactly what type of geotextile to use, referencing specific ASTM test methods and property values (e.g., “AASHTO M288 Class 2 Non-Woven”). If you don’t have specs, it’s always best to consult with a geotechnical engineer or a knowledgeable supplier who can help you select the appropriate material. Many suppliers offer a wide range, as seen in resources like the Composites Catalog from DXD Geosynthetics, which can help you compare options. Don’t just guess! I’ve seen folks try to save a few bucks by using a lighter-weight fabric than specified, only to have it fail, costing way more in the long run to fix. Using expert geotextile mattress solutions for erosion control can also guide choices for complex projects, ensuring you not only pick the right fabric but also the right system to transform terrains with durable geotextile mattresses.

Frequently Asked Questions (FAQs) About Geotextile Fabric

Q1: What are the main raw materials used to make geotextile fabric?

A1: The most common raw materials are synthetic polymers, specifically polypropylene (PP) and polyester (PET). These are chosen for their durability, chemical resistance, and strength.

Q2: What’s the difference between woven and non-woven geotextiles?

A2: Woven geotextiles are made by weaving yarns or tapes together, resulting in high tensile strength and low elongation, making them good for reinforcement and stabilization. Non-woven geotextiles are made by bonding fibers (e.g., needle-punching or heat-bonding), creating a fabric that is generally more permeable and better for filtration, drainage, and separation.

Q3: Can geotextile fabric stop weeds?

A3: Some geotextiles, particularly denser non-wovens or specialized landscape fabrics (which are a type of geotextile), can help suppress weeds by blocking sunlight. However, their primary functions are usually related to soil mechanics rather than just weed control. For heavy-duty weed control, a dedicated weed barrier might be better.

Q4: How long does geotextile fabric last?

A4: The lifespan of geotextile fabric depends on the material (polyester generally lasts longer under stress and UV than untreated polypropylene), environmental conditions (UV exposure, chemicals in the soil), and the stresses it’s subjected to. When properly selected and installed (e.g., buried under soil or rock), high-quality geotextiles can last for many decades, often designed for 50 to 100+ year service lives in permanent applications.

Q5: Is geotextile fabric waterproof?

A5: No, most geotextiles are designed to be permeable, meaning water can pass through them. This is essential for their functions in filtration and drainage. If you need a waterproof barrier, you’d look for a geomembrane, which is often used in conjunction with geotextiles (the geotextile protecting the geomembrane).

Q6: What are common applications for geotextile fabric?

A6: Common uses include road construction (separation and stabilization), drainage systems (filtration around pipes), erosion control (on slopes and shorelines, like in geotextile mattresses), landfill engineering (liner protection and drainage), retaining wall reinforcement, and landscaping.

Q7: How do I choose the right geotextile for my project?

A7: You need to consider the primary function (e.g., separation, filtration, reinforcement), soil type, hydraulic conditions, expected loads, and required lifespan. It’s often best to consult project specifications from an engineer or get advice from a knowledgeable supplier like those who provide expert geotextile mattress solutions.

Q8: Can I just use any plastic sheeting instead of geotextile?

A8: No, definitely not. Regular plastic sheeting (like painter’s drop cloths) lacks the specific engineered properties of geotextiles, such as controlled permeability, tensile strength, puncture resistance, and durability required for geotechnical applications. Using the wrong material can lead to project failure.
