Key Takeaways

• Pipelines face stability risks from erosion, scour, buoyancy, and soil movement. Gotta keep ’em put.
• Geotextile mattresses provide weight and prevent soil erosion around pipelines, keeping ’em stable. Simple idea, really.
• They work by acting as a heavy cover and sometimes by filtering water without letting soil escape. Stops the ground disappearin’ from under the pipe.
• Different types exist: standard for weight, filtered for watery areas, vegetated for green banks. Pick the right tool for the job, yeah?
• Installation involves placing the empty mattress and filling it, usually with concrete or grout. Sounds easy, but placement is key.
• These mattresses offer long-term, low-maintenance protection, often cheaper than rock armour over time. Set it and forget it, mostly.
• Using experienced suppliers and installers is important for project success. Don’t want cowboys muckin’ it up.

So Why Do We Even Need These Things for Pipelines?

Right then, pipelines. Big metal tubes snakin’ across the country, under rivers, even offshore. They carry important stuff… oil, gas, water. You want ’em to stay put, dontcha? Problem is, the ground ain’t always stable. Water moves soil, slopes shift, sometimes the pipe itself wants to float away. So, how d’you keep a heavy pipe exactly where you laid it? That’s where things like geotextile mattresses come in handy. Think of ’em like heavy, flexible blankets you lay over or around the pipe to protect it. People ask me, “Can’t you just bury it deeper?” Sometimes yeah, but often thats not enough, specially in water or on dodgy ground. You need somethin’ extra to hold it all together. These Transform Terrains with Durable Geotextile Mattresses are basically specially made fabric forms, tough stuff, that you fill with concrete or grout once they’re in place. They settle down, mould to the shape of the ground or the pipe, and provide serious weight and protection against the forces trying to mess things up. It’s a bit more clever than just dumpin’ rocks, though that has its place too, mind. Why is it important? Well, a pipeline movin’ or gettin’ damaged is bad news. Leaks are disastrous for the environment, costly to fix, and can disrupt supply. Stability ain’t just a nice-to-have, it’s essential. Forget fancy talk, it’s about keepin’ the pipe safe and sound, year after year. Simple as that, really.

What makes the ground unstable then? Lotsa things. Rain scours away soil on slopes. Rivers and sea currents wash away the bed from under a pipeline, thats called scour, leaves the pipe hangin’, unsupported. Bad place to be. Sometimes the soil itself is just weak, like soft clay or peat. Put a heavy pipe on that, it might sink or the soil might squeeze out from underneath. And then there’s buoyancy, ‘specially for large diameter pipes in water or really wet ground. If the pipe and its contents weigh less than the water or sloppy mud it displaces, it wants to float up. Just basic physics, innit? You need somethin’ heavy to hold it down. I remember a job across a marshland, the ground was basically soup. We had to calculate the buoyancy forces carefully and use hefty concrete mattresses just to keep the pipe from poppin’ up to the surface. It’s not always obvious, these forces. You gotta understand the ground, the water, how they interact with the pipeline. It’s about predictin’ what could happen and stoppin’ it before it does. That’s where the engineering bit comes in, specifyin’ the right protection.

What Makes Pipes Unstable Anyway?

So, what exactly is tryin’ to shift these pipes? You gotta understand the enemy, right? Main culprit? Water. Moving water, whether it’s a river, the sea, or even heavy rain down a hillside, loves to pick up soil and carry it off. This is erosion. If that soil is next to or under your pipeline, you got problems. Scour’s a big one in rivers and offshore. The water flow speeds up around the pipe, like wind around a building, and digs out the material underneath. Suddenly your pipes span a gap like a bridge, unsupported. Stresses build up, it can buckle or crack. Seen it happen. On land, especially on slopes, heavy rain can wash away the soil cover, exposing the pipe or undermining its foundation. Hillsides slump, land slips. All this ground movement puts massive forces on a pipeline. It werent designed to bend like a piece of spaghetti. Think about the Advantages and Applications of Geotextile Mattresses in Erosion Control; they physically shield the soil, stoppin’ the water gettin’ purchase.

Then there’s the pipe itself. Big pipes, ‘specially gas lines in water, can be surprisingly buoyant. They wanna float. If the soil cover gets washed away, or if it wasn’t heavy enough in the first place, the pipe can literally lift off the bottom. This is a nightmare scenario. It puts huge strain on the points where it’s still anchored, and riskes catastrophic failure. You need weight, simple as. Concrete collars work, but they create high points for scour. Continuous cover like a mattress is often better, spreads the load. External loads are another thing. Maybe heavy equipment drives over a shallow buried pipe? Or anchors get dragged across it offshore? That direct impact or load needs resisting. A good mattress adds a protective layer, absorbing some of that energy. It’s not just about stopping natural forces; sometimes it’s about accidental human interference too. There’s a good bit of research on Improving Pipeline Stability with Geosynthetic Reinforcement, lookin’ at how these materials help spread loads and reinforce the surrounding ground. It all comes down to preventin’ movement, whatever the cause. Keep the pipe snug and secure where it’s meant to be.

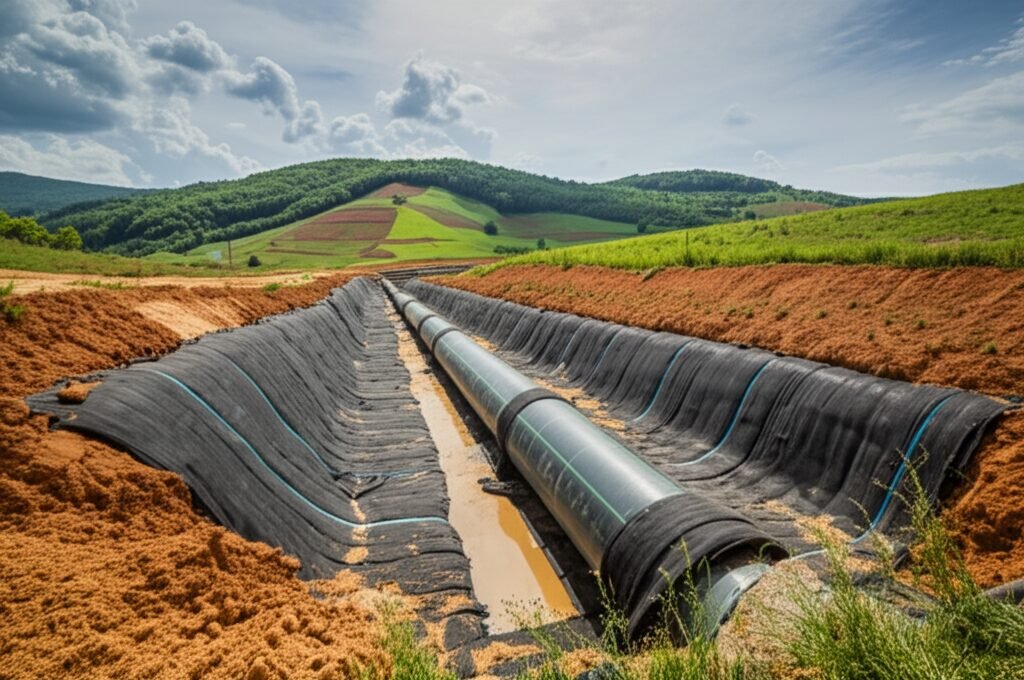

Enter the Geotextile Mattress: How They Stabilize Pipelines

Alright, so how does this fabric bag fulla concrete actually work? What’s the clever bit? Well, it’s not rocket science, but it’s effective. First off, weight. Simple, innit? Once filled with concrete or grout, these mattresses are heavy. Properly heavy. This weight sits on the pipe or anchors the soil around it, counteracting buoyancy forces and physically stoppin’ the pipe from liftin’. It also holds the soil particles together, makin’ it much harder for water to wash ’em away. That’s the basic anti-erosion function. The mattress acts like armour plating for the riverbed or seabed or slope. Water flows over the top of the mattress, not through the soil underneath. Some clever designs, like those from ACEFormer™, are specifically shaped to manage water flow and sediment.

But there’s more to it than just dead weight. The ‘geotextile’ part is important. These fabrics are tough, yeah, but they can also be designed to let water pass through without letting the soil particles escape. This is filtration. Think about groundwater seeping up from below, or water pressure buildin’ up behind the protection. If you just put a solid concrete slab down, that pressure could build up and lift the whole thing, or find a weak spot. Bad news. With a filter-point mattress, the water pressure can bleed away safely through the fabric between the concrete bits, but the precious soil stays put. This is really important in areas with changing water levels or groundwater issues. We often use Advanced Filtration Geotextile Mattress Systems in these situations – the fabric specification is absolutely critical to get right. Get it wrong, and either it clogs up (pressure builds) or it lets fines through (erosion happens). Gotta match the fabric pore size to the soil particle size. That’s where experience comes in, knowin’ what works where. So, it’s a combo – weight to hold things down and stop erosion, and sometimes, smart filtration to manage water pressure safely. Keeps the whole system stable.

Types of Geotextile Mattresses for Pipeline Jobs

Now, are all these mattresses the same? Nah, course not. You pick the right type for the specific problem your pipe’s facin’. Makes sense, dunnit? The most basic is the standard, uniform mattress. It’s essentially a big, flat bag with internal ties that create pillows of concrete when you fill it. It provides that crucial weight and a solid protective layer. Good for general scour protection, pipeline weighting, and basic slope stabilisation where you just need that heavy blanket effect. Simple, effective, often the cheapest option if it fits the bill. We use these loads offshore for weighting pipes and protectin’ cable crossings. Straightforward stuff.

Then you got the filter point mattress, which I mentioned before. This one’s a bit more clever. Instead of being uniformly thick concrete, it has these unwelded spots, the filter points, typically round areas spaced across the mattress. When you fill it, the concrete forms pillows, but these filter points remain just fabric. This allows water to pass through, relievin’ hydrostatic pressure, while the fabric stops the soil washing out. Absolutely essential for riverbanks, bridge abutments, anywhere you’ve got fluctuating water levels or seepage. If you use a solid mattress where you need drainage, you’re askin’ for trouble. There are also variations like Raised-Pattern Geotextile Mattress Systems Cut Costs 40% which use less concrete fill while still providing good stability, saving material and money. The specific pattern can also improve flexibility or hydraulic performance. Companies like HUESKER offer systems like Incomat – A Robust Solutions for Erosion Control, showcasin’ different designs for different erosion challenges.

Finally, there’s the Vegetation Geotextile Mattress Systems for Slope Stability. These are designed with erosion control in mind, but also to allow plants to grow through ’em. They often have larger gaps or pockets designed to hold topsoil. Why? Becuase vegetation is brilliant at long-term slope stabilisation. The roots bind the soil, the leaves slow down rain impact. So, the mattress provides initial protection while the plants get established, then the plants take over the main job, creating a much more natural, green lookin’ finish. Great for riverbanks, canal linings, and environmental schemes where you want hard engineering that blends in. Choosing the right one depends on the site specifics: water flow, soil type, slope angle, environmental needs, budget. Gotta weigh it all up.

Real-World Examples: Success Stories

Talkin’ theory’s one thing, seein’ it work is another. Where have these mattresses actually solved a pipeline problem? I’ve seen loads of examples over the years, some real head-scratchers where mattresses saved the day. One tricky one was a river crossing for a major gas pipeline. The riverbed was shingle, fast flowin’, prone to flash floods. Classic scour risk. The initial design used rock armour, but the floods just washed the rocks downstream. Expensive mess. We came in and specified filter point mattresses laid directly over the pipe section across the main channel. The weight held the pipe down, the mattress shape resisted the flow, and the filter points stopped any fine material washing out from beneath. We went back a year later after some heavy rains, and the mattress hadn’t budged. Pipe was safe as houses. Rock just wouldn’t cut it there. Check out some general Proven Geotextile Mattress Projects for Water Infrastructure to get an idea of typical applications.

Another job involved an exposed section of oil pipeline runnin’ down a steep, unstable clay slope near the coast. Every winter, little bits of the slope would slip, exposing more pipe. Major headache for the operator. Digging back the whole slope wasn’t feasible, too big, too costly. We designed a system using standard mattresses anchored at the top of the slope and laid like tiles down the face, keyed into a stable toe at the bottom. It created a heavy, stable crust over the slippy clay. We combined it with some deep drainage to take water pressure out of the slope behind the mattresses. That slope hasn’t moved significantly since. It wasn’t just about stopping surface erosion; it was about adding enough weight and stiffness to prevent shallow slips. Sometimes you see these mattresses used in big coastal defence schemes too, protectin’ the foundations of sea walls or offshore structures where pipelines might also terminate. They’re versatile bits of kit when used right. It always comes back to understandin’ the specific problem – scour, slippage, buoyancy – and picking the mattress type and design that directly tackles it.

Installation Insights: Getting it Right

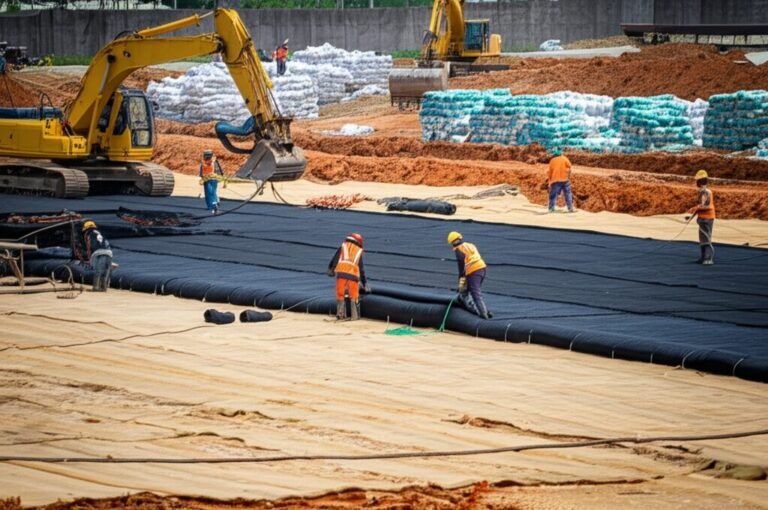

So you’ve picked your mattress, how d’you get it installed properly? Sounds simple: lay out fabric bag, fill with concrete. But like most things in engineering, the devil’s in the details. Get the installation wrong, and the whole thing might not work as intended. First step, preparation. The ground underneath needs to be reasonably smooth. Get rid of big rocks, tree stumps, sharp objects that could damage the fabric. Sometimes you need a levelling layer of sand or gravel, ‘specially if the ground’s very uneven. For pipelines, you need to make sure the mattress is positioned correctly over or around the pipe according to the design drawings. Overlaps between adjacent mattresses are also critical – gotta make sure there are no gaps for erosion to get started. There’s a good overview in this Geotextile Mattress Uses, Construction, Benefits & Installation Guide.

Filling is the main event. Usually, it’s done with a pumpable grout or micro-concrete mix. The mix design is important – needs to be flowable enough to fill the whole mattress without voids, but strong enough once cured. You pump it into special inlets built into the mattress. контроль (kontrol’ – Russian for ‘control’) is key here. You need to manage the pumping pressure and volume to make sure the mattress fills evenly and doesn’t burst! Seen that happen when crews get over enthusiastic with the pump. Underwater installations are trickier, obviously. Divers might be needed to position the mattress and monitor the filling. Sometimes the mattress is positioned empty, then filled in situ; other times, especially smaller ones, might be filled onshore and carefully lifted into place. One tip from experience: make sure the filling ports are properly sealed afterwards. Sounds obvious, but if grout leaks out, you lose weight and protection. Using experienced crews who understand the materials makes a huge difference. Don’t skimp on installation quality; it underpins the whole system’s performance. If you need advice, talk to the Expert Geotextile Mattress Solutions for Erosion Control.

Long-Term Benefits and Considerations

Why go to the bother and expense of these mattresses then? What’s the payoff down the line? Well, the big advantage is long-term, low-maintenance protection. Once installed correctly, a concrete-filled mattress is basically a permanent fixture. It doesn’t rust like steel, it doesn’t rot like timber, it doesn’t wash away easily like loose rock (in many cases). It just sits there, doin’ its job for decades. For pipelines, that means reliable protection against the forces we talked about – scour, erosion, buoyancy. Less worry about inspections finding problems, less need for costly repairs or interventions. You install it right, you can pretty much forget about it for that specific issue it was designed to solve. That peace of mind is valuable for any pipeline operator responsible for Specialized Geotextile Protection for Critical Infrastructure.

Cost is always a factor, innit? Initial installation might seem more expensive than, say, dumpin’ a load of rock. But you gotta look at the whole life cost. How often will that rock need topping up after floods? How much damage might still occur between maintenance visits? Mattresses often win out over time becuase of their durability and effectiveness. Less rework, less risk. Plus, they can be tailored precisely to the need. You’re not just chucking material hopeing for the best; it’s an engineered solution. From an environmental angle, vegetating mattresses offer a greener finish than bare concrete or rock. They can become part of the local habitat. Even standard mattresses, by preventing chronic erosion, stop sediment pollution downstream, which is a plus. Material science plays a role too; the performance under pressure is key, similar to how materials like syntactic foams are tested under compression (Performance of Syntactic Foams under Compression), though obviously the application is different. You’re relying on the cured concrete’s strength and the fabric’s integrity. The energy used in producing the cement and textiles is a factor, as studied in broader manufacturing contexts (Exploring the Relationship between Energy Consumption and Economic Performance: Evidence from Chinese Manufacturing Industries), but the longevity often offsets the initial input compared to repeated repairs using other methods. Considerations? Main one is getting the design and installation right first time. Fixing a badly installed mattress is difficult and expensive. Choose your type carefully, use experienced people.

Choosing the Right Partner for Your Project

This brings us to a crucial point. Gettin’ the right geotextile mattress solution isn’t just about pickin’ one off a shelf. It’s about the whole package: the right material specification, a design that fits the site conditions, and quality manufacturing. The fabric itself needs to be tough, resistant to UV light (if exposed), chemically stable, and have the right weave or non-woven structure for strength and filtration (if needed). The way the mattress is sewn or welded together matters too – strong seams are vital, especially during the filling process under pressure. You want a manufacturer who knows their stuff, who has proper quality control in place. Someone like Li Gang: Expert Geotextile Mattress Manufacturing Leader represents the kind of expertise that goes into making these products reliably.

Why does this matter so much for pipeline stability? Becuase failure isn’t really an option. If the mattress material fails, or the seams split during filling, or the filtration properties aren’t correct for the soil… the system won’t perform. The pipeline remains at risk. You need consistency in the product. Every square metre of fabric needs to meet the spec. Every seam needs to be strong. Every filter point needs to be correctly formed. Working with a reputable supplier gives you confidence in the materials you’re putting down. They can provide test data, certificates of conformity, maybe even design assistance based on their experience with the product. They understand the tolerances required and the potential failure modes. It’s not just about buyin’ a product; it’s about buyin’ into a reliable engineering solution backed by manufacturing expertise. Look for suppliers with a track record, good technical support, and transparent quality processes. It reduces the project risk significantly compared to just goin’ for the cheapest fabric you can find.

Frequently Asked Questions (FAQs)

Q1: How long do geotextile mattresses last?

A: Properly designed and installed concrete-filled geotextile mattresses are very durable. They resist weathering, UV (if applicable fabric chosen), and abrasion. You can expect them to last for decades, often 50 years or more, providing long-term pipeline protection with minimal maintenance. Longevity is one of their main benefits over alternatives like loose rock in some environments.

Q2: Are they environmentally friendly?

A: Compared to constant dredging or replacing eroded rock, they can be. They stop chronic sediment pollution. Vegetating mattresses actively support habitat creation. The main impact is the concrete fill, but the permanence means this impact isn’t repeated often. Overall, they’re often considered a good environmental option for long-term stabilisation, especially the Vegetation Geotextile Mattress Systems for Slope Stability.

Q3: Can they be installed underwater?

A: Yes, absolutely. Installation underwater is a common application, especially for pipeline scour protection in rivers and offshore. Special techniques and often divers are used to position the empty mattress correctly before filling it with grout pumped from the surface. Advanced Filtration Geotextile Mattress Systems are often used in these subsea or riverine environments.

Q4: What are they filled with?

A: Usually a fine aggregate concrete, often called grout or micro-concrete. The mix needs to be flowable enough to pump easily and fill all the voids within the mattress formwork, but strong and durable once cured. Sand-cement mixes are common. The exact specification depends on the project requirements (strength needed, underwater placement etc).

Q5: Are they expensive compared to rock armour (riprap)?

A: The initial cost per square metre might be higher than just dumping rock. However, mattresses often provide better, more reliable protection, especially in high-flow conditions or where specific filtration is needed. When you factor in the whole life cost, including reduced maintenance (rock often needs topping up) and potentially better performance reducing risk, mattresses are often very cost-effective, particularly systems like the Raised-Pattern Geotextile Mattress Systems Cut Costs 40%.

Q6: Can they be used on very steep slopes?

A: Yes, they are often used for slope stabilisation. Anchoring at the top and potentially intermediate anchoring might be needed depending on the slope angle and length. They provide a heavy, stable surface layer preventing erosion and shallow slips. You can see examples in Proven Geotextile Mattress Projects for Water Infrastructure.

Q7: Do they damage the pipeline during installation?

A: No, installation should not damage the pipeline. The fabric mattress is laid carefully over or around the pipe before being filled slowly with grout. The process is controlled to avoid excessive load or impact on the pipe itself. The goal is Specialized Geotextile Protection for Critical Infrastructure, so care is taken.
