Key Takeaways: Underwater Geotextile Mattress Installation

• Specialized Methods Needed: Standard Linstallation techniques don’t work underwater due to visibility, currents, buoyancy, and pressure issues.
• Thorough Prep is Key: Detailed seabed surveys (sonar, ROV, diver) and site clearing are critical before deployment.
• Controlled Deployment: Using cranes, barges, and deployment frames is essential. Managing buoyancy during descent prevents damage or misplacement.
• Secure Anchoring: Mattresses must be firmly anchored using pins, weights, or trenching, especially on slopes or in currents. Joints need careful sealing.
• Underwater Grouting Challenges: Requires specific grout mixes (resisting washout, controlled setting) and careful pumping techniques to ensure full fill without voids.
• Quality Control: Post-installation checks using divers, ROVs, or sonar scans confirm correct placement and integrity.
• Expertise Required: Success depends on experienced crews, specialized equipment (ROVs, dive teams, specific pumps), and careful planning.

Understanding the Challenge: Why Underwater Geotextile Mattress Installation is Different

Putting geotextile mattresses down on dry land is one thing, but doing it underwater? That’s a whole different ball game. These mattresses are brilliant for stopping erosion and stabilising banks and beds, like you can read about in this guide on Advantages and Applications of Geotextile Mattresses in Erosion Control. But when you add water, especially deep or moving water, lots of new problems pop up. You can’t just see what you’re doing easily, for starters. Visibility might be near zero sometimes, depending on how murky the water is. Then there’s the currents. Water flow pushes things around, including big heavy mattresses if they aren’t controlled properly during placement. Buoyancy is another funny one – the mattress might want to float away, or sink too fast and land wrong. And the pressure underwater changes how materials behave and how equipment works. Because of all this, you need specialized methods for submerged deployment, it’s not Lwork for amateurs. Trying to use normal ‘on-land’ methods just doesn’t cut it, you end up with a mess or a job that fails quickly. We’ve seen projects go wrong because people underestimated how different it is working below the surface. You need specific planning, the right gear, and people who know the tricks of the trade for these underwater jobs.

Think about trying to lay a carpet perfectly flat in a dark room while floating, with fans blowing from different directions – that gives some idea of the hassle. The main issues you gotta deal with are:

• Visibility: Often poor, making precise positioning hard. Divers rely on touch, ROVs need good sonar or cameras.
• Currents: Can move the mattress during deployment, making placement inaccurate or even dangerous. Need to time work with slack tides if possible, or use strong guide frames.
• Buoyancy: The mattress itself, especially before filling, can be awkward. Too much float, it’s hard to get down. Too little, it sinks uncontrolled. Ballast is often needed.
• Seabed Conditions: Underwater ground isn’t always flat. Rocks, mud, debris – all need assessing and dealing with. Improper prep leads to poor contact and less effective erosion control.
• Pressure: Affects grout setting times and equipment operation, especially in deeper water installations discussed in Placing of Geotextiles in Deep Water.

Understanding these challenges from the start is the only way to plan a successful underwater installation. It shapes everything, from the type of mattress chosen to the equipment used and the experience level needed for the crew. Taking it seriously means the difference between a lasting solution and wasted effort.

Site Prep and Surveying: Laying the Foundation Underwater

Before you even think about getting a geotextile mattress wet, you absolutely have to know what you’re dealing with on the bottom. Good site preparation and surveying is maybe the most critical part of the whole underwater installation process. You can’t just guess what the riverbed or seabed looks like. Doing it right means using the proper tools and techniques. Usually, this involves a combination approach. Sonar surveys, like side-scan or multi-beam sonar, give you a map of the bottom’s shape and contours. They can show you big obstacles, slopes, and general topography. But sonar doesn’t see everything perfectly, especially smaller debris or soft spots like deep mud. That’s where Remotely Operated Vehicles (ROVs) or actual divers come in. An ROV with a camera can give you eyes underwater, letting engineers see the exact conditions, check for debris like old pipes or rocks, and verify the sonar data. Divers can do even more detailed checks by feel, especially in poor visibility, and can help clear smaller obstacles or prepare specific areas by hand if needed. It’s tricky work, getting this survey accurate enough for placement.

Once you know what the bottom looks like, you gotta prepare it. This isn’t just about clearing big rocks. Any significant debris that could puncture the mattress or prevent it lying flat needs removing. Sometimes this needs dredging or using grabs from a barge. Leveling might also be necessary, especially if the mattress needs to sit flush against a structure or if the area is very uneven. Minor leveling can sometimes be done by divers, but bigger jobs need machinery. Then, marking out the exact placement area is vital. Underwater, you can’t just use stakes and string like on land. Often, teams use acoustic positioning systems (like USBL – Ultra-Short Baseline) mounted on the deployment frame or ROV, combined with GPS for the surface vessel. Weighted markers or pre-laid guidelines on the seabed can also help divers or ROVs align the mattress correctly. Getting the layout precise ensures the mattress covers the intended area and connects properly to any adjacent sections or structures. This meticulous prep prevents loads of problems later on. Imagine trying to grout a mattress smoothly when it’s draped over a hidden boulder – it just won’t work right, and the erosion control provided by solutions like those seen in Proven Geotextile Mattress Projects could be compromised.

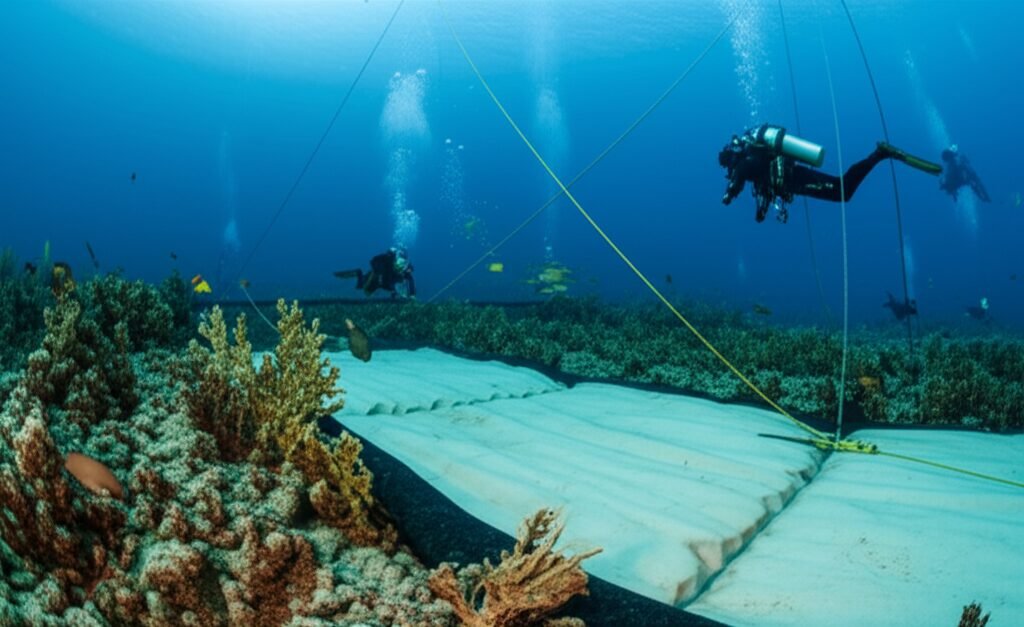

Handling and Deployment Techniques: Getting the Mattress in Place

Okay, so the site’s prepped and marked. Now you gotta get the actual Geotextile Mattress down there. This deployment phase needs careful handling and specialised equipment. You can’t just chuck it over the side. Depending on the mattress size and type, and the site conditions, different methods are used. One big question is whether to partially pre-fill the mattress with grout or ballast on the surface, or deploy it empty and fill it completely underwater. Pre-filling can help manage buoyancy, making it sink more predictably, but it also makes the mattress much heavier and harder to handle. Deploying empty is lighter, but controlling its SINK rate and preventing it flapping around in currents is harder. Often a deployment frame is used. This is basically a metal structure that holds the mattress flat and controlled as it’s lowered by a crane from a barge or jetty. The frame helps guide it into the exact position, sometimes using those acoustic positioning systems we mentioned.

Controlling how the mattress behaves as it goes through the water column is super important. We often add temporary weights or use guide ropes attached to anchors on the seabed to keep it stable. If it’s a large mattress being unrolled underwater, the speed of unrolling needs careful control so it doesn’t billow or get snagged. Some Raised-Pattern Geotextile Mattress Systems might need specific orientation during placement. The deployment method has to consider the specific properties of the geotextile being used, as discussed in guides like Placing of Geotextiles in Deep Water. The team, including crane operators, barge masters, divers, and ROV pilots, must work together seamlessly. Communication is key, often using underwater communication systems for divers and constant radio contact with the surface crew. It’s a slow, deliberate process. Rushing leads to mistakes like tearing the fabric, misaligning panels, or trapping debris underneath. Experienced crews know how to read the conditions – the currents, the wave action – and adjust the deployment technique on the fly if necessary. That experience is what makes these potentially complex operations run smooth.

Securing the Mattress: Anchoring and Edging Details

Once the geotextile mattress is correctly positioned on the seabed or riverbed, just leaving it there isn’t enough. You need to make sure it stays put, especially in areas with currents, waves, or steep slopes. This means securing it properly, focusing on anchoring the main body and dealing with the edges. Why is anchoring so vital underwater? Water forces can be surprisingly strong. Currents can try to lift the edges or even shift the whole mattress if it’s not held down firmly, particularly before it’s fully filled with grout and heavy. Wave action near the surface or scouring around the edges can undermine the placement. Proper anchoring prevents this movement, ensuring the mattress maintains intimate contact with the soil beneath it, which is crucial for its job of erosion control or infrastructure protection, like when providing Specialized Geotextile Protection for Critical Infrastructure.

There are a few common ways to anchor these mattresses underwater. Long steel pins or stakes can be driven through designated points on the mattress into the underlying soil, much like on land but requiring divers or specialised hydraulic equipment operated from the surface or via ROV. Concrete blocks or other heavy weights can also be placed along edges or at key points, especially in softer soils where pins might not hold well. Another very effective method, particularly for edges, is trenching. This involves digging a small trench along the mattress perimeter, tucking the edge of the fabric into it, and then backfilling the trench with soil or gravel. This creates a very secure edge seal that prevents undermining. Selecting the right anchoring method depends on the soil type, water depth, expected hydraulic forces, and the mattress design itself.

Dealing with joints between adjacent mattress panels is also part of securing it. You need to ensure a continuous layer of protection. Panels are often designed with overlapping flaps or specific joint details. These overlaps need to be secured correctly, sometimes with extra pins or by ensuring the grout fill connects the panels firmly. On slopes, anchoring becomes even more critical to prevent the mattress sliding downhill. Additional anchor points, possibly tied back to stable ground further up the slope, might be needed. Ensuring these securing details are done right requires careful work by divers or inspection by ROVs. Missing anchor points or poorly sealed edges are common failure points if the job isn’t done meticulously. It’s these details that make the difference in the long-term performance of the whole system.

Filling Methods: Grout Injection Underwater

Getting the geotextile mattress placed and secured is only half the battle; filling it properly with grout underwater is where things get really technical. You can’t just pump standard concrete mix down there and hope for the best. Underwater grouting comes with its own set of challenges that need smart solutions. The biggest issues are grout washout, dilution, and ensuring it cures properly in a wet environment. Washout happens when the water currents literally wash away the cement particles from the grout mix before it can set, leaving you with weak, sandy fill. Dilution is when the surrounding water mixes too much with the grout, increasing the water-cement ratio and drastically reducing the final strength and durability. Proper curing underwater also requires careful mix design, as the temperatures and chemical environment are different than in air. We need a grout that flows well enough to fill the entire mattress void but is cohesive enough to resist washout and dilution. It’s a balancing act.

The grout mix design is therefore critical. Typically, underwater grouts use finer cement particles, sometimes blended cements, and often include special admixtures. Anti-washout admixtures (AWAs) are common; these increase the grout’s viscosity and cohesion, making it stick together better underwater. Plasticizers might be used to improve flowability without adding excess water. Accelerators can sometimes help speed up the initial set in cold water. The specific gravity of the grout mix also needs to be controlled so it properly displaces the water inside the mattress fabric formwork. As outlined in discussions around A New Specification for Geotextile Grout-Filled Mattresses, getting this mix right is fundamental. Pumping the grout requires specialised equipment too. Often a high-pressure pump is used on the surface vessel (barge), connected via hoses to injection ports built into the geotextile mattress. The sequencing of filling is important – starting usually from the lowest point and working upwards to push water out. Multiple injection ports are used across the mattress, and the filling sequence is planned to ensure grout flows evenly and fills all corners without trapping pockets of water or air. For systems focusing on permeability like some Advanced Filtration Geotextile Mattress Systems, ensuring the grout fills completely around filter points without blocking them is key. Monitoring pressures during pumping helps avoid over-pressurizing and bursting the fabric shell. Divers or ROVs often monitor the filling process visually, checking for leaks and ensuring the mattress profile inflates correctly. Complete filling requires patience and skill – it takes experience to know how the grout is flowing inside the fabric based on external cues and pump feedback.

Quality Control and Monitoring Post-Installation

Just because the grout pump has stopped and the barge has sailed away doesn’t mean the job is finished. For underwater geotextile mattress installations, proper quality control (QC) and post-installation monitoring are essential to verify the work was done right and ensure it performs as intended over the long term. How do you know the mattress is sitting correctly, fully filled, and hasn’t been damaged during the process when it’s all underwater? You have to check. This verification step is crucial; skipping it is asking for trouble down the line. We need confirmation that the mattress is in full contact with the seabed, that there are no major voids in the grout fill, that anchors are holding, and that edges are secure against undermining. This provides confidence in the installation, like knowing you’ve invested in a reliable solution similar to established products like the Triton Marine Mattress System.

Several techniques are used for this underwater QC. Direct visual inspection by experienced divers is often the best way, where conditions allow. Divers can physically check the mattress surface, probe for any soft spots indicating incomplete fill, inspect seams and anchor points, and check the edges for scour protection integrity. In deeper water or hazardous conditions, ROVs equipped with high-resolution cameras and manipulator arms can perform similar checks. Sometimes, non-destructive testing methods are employed. For example, specialised sonar scans can sometimes map the thickness and consistency of the grout fill inside the mattress after it has hardened. Comparing post-installation survey data (like multi-beam sonar) with the pre-installation surveys can confirm the final position and profile match the design intent. Looking at case studies of Proven Geotextile Mattress Projects often highlights the QC measures taken.

Beyond the initial QC right after installation, long-term monitoring is often necessary, especially for critical projects. This might involve periodic inspections (annually, or after major storm events) using the same techniques – divers, ROVs, or sonar. Monitoring checks for any signs of damage, settlement, mattress movement, or undermining around the edges. Catching potential problems early allows for timely maintenance or repairs before they become major issues. This ongoing assessment ensures the geotextile mattress continues to provide the intended protection or stabilization effectively throughout its design life. Without this follow-up, the initial investment could be wasted if an unforeseen issue develops unchecked. It provides peace of mind for the asset owner.

Specialist Equipment and Expertise Needed

Underwater geotextile mattress installation isn’t a job for your average construction crew with standard land-based gear. It demands a specific set of specialized equipment and, crucially, highly experienced personnel who understand the unique challenges of working beneath the waves. Trying to undertake such a project without the right tools and know-how is inefficient at best, and often leads to project failure or safety incidents. The machinery involved needs to handle marine environments and the specific tasks of deploying and filling the mattresses accurately. This usually starts with a stable surface platform, typically a barge or sometimes a jack-up platform, equipped with heavy-lift cranes capable of precisely lowering potentially heavy mattress panels or deployment frames. Navigation and positioning are critical, so the vessel needs accurate GPS and potentially dynamic positioning (DP) systems to hold station, especially in currents or deeper water.

Then there’s the underwater toolkit. ROVs are frequently essential for site surveys, monitoring deployment, guiding placement, performing inspections, and sometimes even assisting with tasks using manipulator arms. Commercial diving teams are often required for tasks needing dexterity, like connecting grout hoses, manually securing anchors, clearing small debris, or performing detailed tactile inspections. These divers need specific training and certifications for the depths and conditions involved. The grout mixing and pumping equipment also needs to be specialised for marine work. This includes high-capacity, reliable pumps capable of handling potentially abrasive grout mixes and delivering them over long distances underwater, along with robust hoses and connections designed to withstand pressure and the marine environment. As shown in projects involving Construction of Underwater Dykes Using Geotextile Containment Systems, the scale and complexity of equipment can be significant.

Beyond the hardware, the human element – the expertise – is paramount. The project managers, engineers, survey team, ROV operators, dive supervisors, and crane operators must all have specific experience in marine construction and ideally, geotextile mattress installation. They need to understand hydrodynamics, buoyancy control, underwater positioning methods, and the behavior of materials underwater. Experts like those highlighted by Li Gang: Expert Geotextile Mattress Manufacturing Leader bring invaluable knowledge to both the manufacturing and installation phases. Comparing the process to a standard installation detailed in a Geotextile Mattress Uses, Construction, Benefits & Installation Guide clearly shows the increased complexity and specialized nature of underwater work. This combination of the right equipment and skilled people is non-negotiable for a successful outcome.

Ensuring Success: Best Practices and Avoiding Pitfalls

Pulling off a successful underwater geotextile mattress installation boils down to meticulous planning, using the right techniques, and having experienced people on the job. It’s about combining best practices learned over many projects and actively avoiding the common mistakes that can derail the whole thing. Success ultimately means the mattress is installed correctly, performs its intended function (like erosion control), and lasts for its design life, helping to Transform Terrains with Durable Geotextile Mattresses. Some key factors consistently lead to good outcomes. Firstly, as we’ve stressed, thorough site investigation and preparation is non-negotiable. You must know the seabed conditions accurately. Secondly, choosing the right type of mattress and grout mix for the specific underwater environment is critical. Thirdly, careful, controlled deployment using appropriate frames and buoyancy management prevents damage and ensures accurate placement. Fourth, robust anchoring and proper edge finishing are vital for stability and preventing undermining. Finally, meticulous quality control during and after installation verifies the job was done right.

Conversely, there are several common pitfalls to watch out for. Inadequate site preparation is a big one – trying to place a mattress over hidden debris or on an uneven surface spells trouble. Poor buoyancy control during deployment can lead to the mattress sinking too fast, landing incorrectly, or even becoming damaged. Using the wrong grout mix, or inadequate pumping techniques, can result in incomplete fill, weak spots, or excessive washout. Incorrect anchoring, especially on slopes or in high-current areas, can lead to mattress movement or failure. A major pitfall is underestimating the complexity and trying to cut corners on specialized equipment or experienced personnel. This almost always costs more in the long run when things go wrong.

One often overlooked best practice is thorough contingency planning. What happens if the weather suddenly turns bad mid-deployment? What if a key piece of equipment breaks down? What if unexpected obstructions are found on the seabed? Having backup plans and procedures for common potential problems is essential for keeping the project on track and ensuring safety. Communication between all parties – the client, engineers, surveyors, barge crew, divers, ROV team – needs to be crystal clear throughout the project. Ultimately, given the complexities involved, engaging with specialists is highly recommended. For advice or to discuss a specific project’s needs, reaching out to Expert Geotextile Mattress Solutions for Erosion Control can provide the necessary guidance and ensure the application of these best practices from start to finish.

Frequently Asked Questions (FAQs)

Q1: How deep can geotextile mattresses be installed underwater?
A: The depth really depends on the specific project requirements, the type of mattress, the filling method, and the equipment available. Installations have been done in relatively shallow water (a few meters) for things like riverbank protection, up to much deeper water (tens of meters or more) for offshore pipeline support or seabed stabilization. Deep water installations (>30-40m) often rely more heavily on ROVs rather than divers due to depth limitations for diving operations and require more specialised deployment and grouting systems. Placing of Geotextiles in Deep Water discusses some challenges of deeper placements.

Q2: What is the typical lifespan of an underwater geotextile mattress?
A: When properly designed and installed using appropriate materials (like durable geotextiles and high-quality grout), underwater geotextile mattresses can have a very long design life, often measured in decades (e.g., 50+ years). The actual lifespan depends on factors like the severity of the environmental conditions (currents, waves, potential abrasion), the quality of the installation, and the specific materials used. Regular monitoring helps ensure they continue to perform as expected.

Q3: Can geotextile mattresses be installed in strong currents?
A: Yes, but it requires careful planning and specialised techniques. Installation might need to be timed with periods of lower current (like slack tide in tidal areas). More robust deployment frames, heavier ballast during placement, and stronger anchoring systems might be necessary. The grout mix may also need enhanced anti-washout properties. Experienced crews are essential for working safely and effectively in strong currents.

Q4: What happens if the mattress gets damaged during installation?
A: Minor tears or punctures might sometimes be repaired underwater by divers using specialized patching kits or techniques before or during grouting. However, significant damage might require the panel to be retrieved (if possible) and replaced. Preventing damage through careful handling, controlled deployment, and thorough site clearing is the best approach. QC checks after placement help identify any damage that occurred.

Q5: Are underwater geotextile mattress installations environmentally friendly?
A: Generally, yes, they are considered an environmentally sound solution for erosion control and stabilization compared to some traditional methods like dumping large amounts of rock. The mattresses conform to the seabed, minimize habitat disruption compared to massive structures, and the grout fill is stable once cured. Vegetation Geotextile Mattress Systems can even be adapted in shallower intertidal zones to encourage habitat growth, though this specific type is less common for fully submerged deep applications. As with any construction, minimizing impact during the installation process itself (e.g., managing vessel disturbance, preventing grout leaks) is important.
